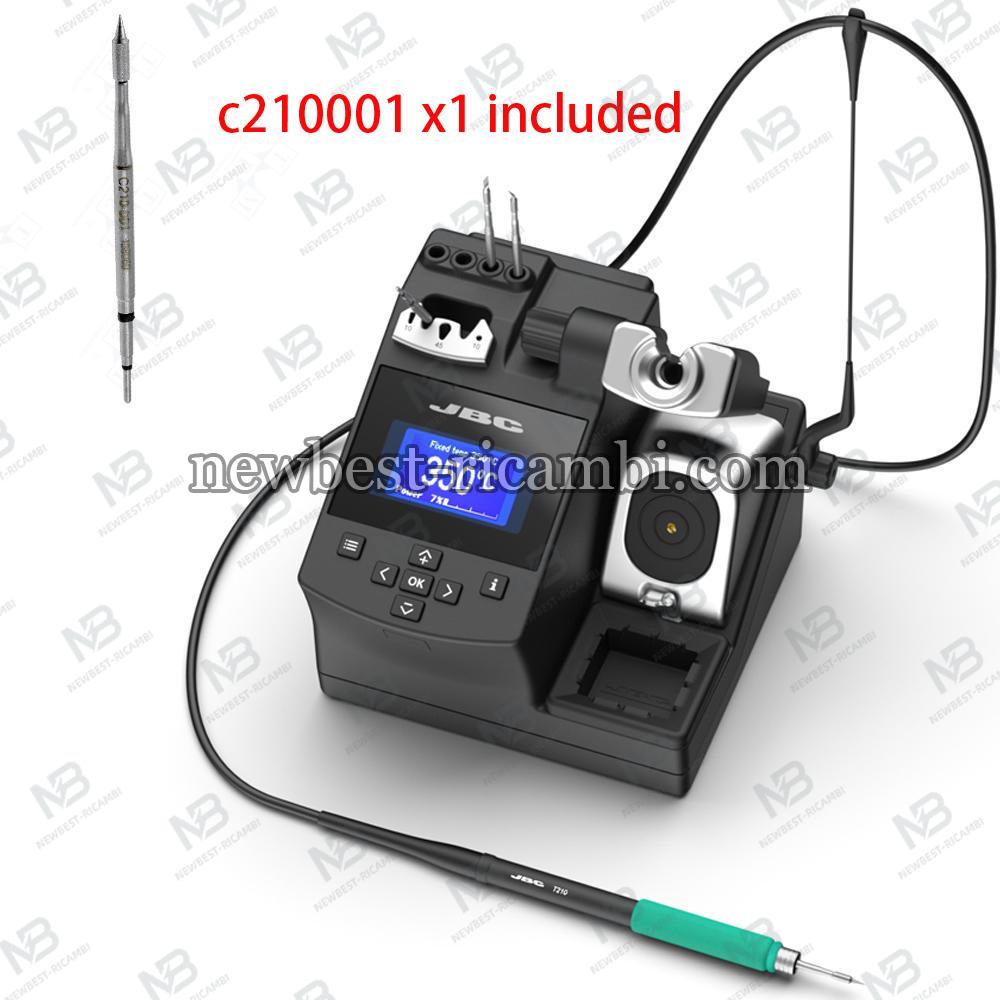

> REPAIR SERVICE TOOLS > Repair Devices > Soldering Machine > Jbc CD-2SQF CDS Precision Soldering Station + Cartridge C210001
Newly Upgraded!
More intuitive and well-connected
This station is ideal when working on populated PCBs or under a magnifying glass.
It uses T210 Precision Handle, the perfect handpiece for accuracy soldering jobs with medium power requirements.
This station includes:
• Fast and easy configuration of the station thanks to the 7-key keypad.
• Cartridge Holder to store up to four cartridges, as well as Cartridge Extractor and Cable Collector.
• Connectivity to JBC Fume Extractor (connector RJ12).
It provides the best soldering quality thanks to JBC Most Efficient Soldering System and, additionally, the Sleep & Hibernation Modes help to extend the life of tips.
CD-9SQF
100 V
CD-1SQF
120 V
CD-2SQF
230 V
1
CD Soldering Station
T210 Precision Handle
(cartridge c210001 included)
Selectable Temperature
90 to 450 ºC / 190 to 840 ºF
CONNECTIVITY
USB-B
Software PC / Firmware update
Equipotential bonding
Optional connection to EPA
RJ12 Connector
Earthing Fuse
F 1.25A
ESD/EOS
ESD safe
Tip to ground vol./ resist.
Meets and exceed
ANSI/ESD S20.20-2014 IPC J-STD-001F
POWER SUPPLY
Peak power
40 W - 23.5 V
Ambient operating temp.
10 to 50 ºC / 50 to 122 ºF
DIMENSIONS AND WEIGHT
Compact Stations
170 x 176 x 145 mm / 2.70 kg.
6.69 x 6.93 x 5.71 in / 5.95 lb.
Package
234 x 234 x 258 mm / 3.27 kg.
9.21 x 9.21 x 10.16 in / 7.21 lb.
