> REPAIR SERVICE TOOLS > Repair Devices > Hot air machine > Jbc JNASE-2A High-Precision Hot Air Station
Precision soldering through hot air, especially for SMDs
JNA is the only Hot Air Station to rework, position and remove SMDs without affecting nearby components.
It is perfect for reworking SMDs on areas with minimal separation.
JBC Exclusive System enables the regulation of temperatures and air at very low levels in order to avoid the movement of adjoining components.
Makes it the perfect station for easy and high-precision reworking of components as small as 01005, even under the magnifying glass.
The station includes T260 Pick & Place to position and remove components easily thanks to the built-in suction pump.

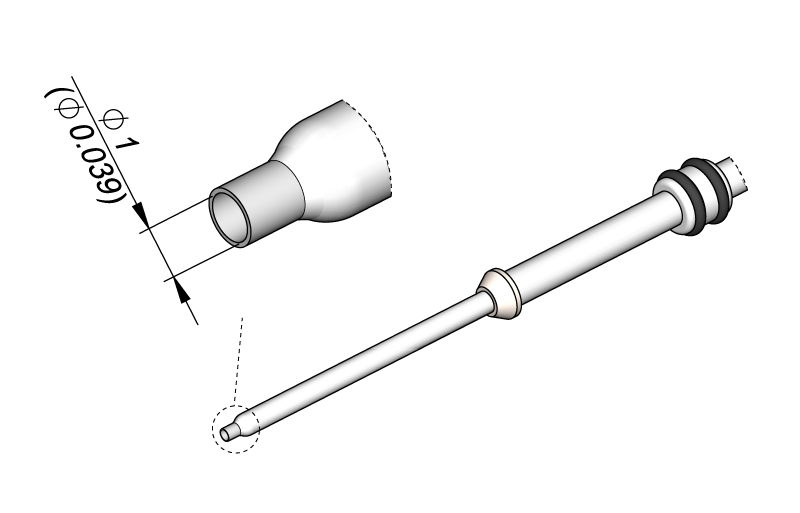

JBC offers a replacement heating element J125010 with outlet diameters of 1mm.
JNASE-9A
100 V
JNASE-1A
120 V
JNASE-2A
230 V
1
JNAE Control Unit
NH High-Precision Heater Hose Set
NHS Stand for NH High-Precision Heater Hose Set
NBC260 Bent Needles & cups for T260
J125010 Heating Element for JNA
Nominal power
70 W
Temperature selection
Room temp. 150 - 450 °C / 300 - 840 °F
Cool mode
T off. Used to blow air at room temperature
Ambient operating temp.
10 - 50 ºC / 50 - 122 ºF
Air flow regulation
0.15 - 2.5 SLPM
Vacuum
53% / 397 mmHg / 15.6 inHg
Communication connectors
USB-A / USB-B
RJ12 for RS232
Pedal / Stand
Complies with CE standards
ESD protected
DIMENSIONS AND WEIGHT
Premium Stations
180 x 170 x 110 mm / 2.83 kg.
7.09 x 6.69 x 4.33 in / 6.23 lb.
Package
370 x 370 x 200 mm / 4.20 kg.
14.57 x 14.57 x 7.87 in / 9.26 lb.
